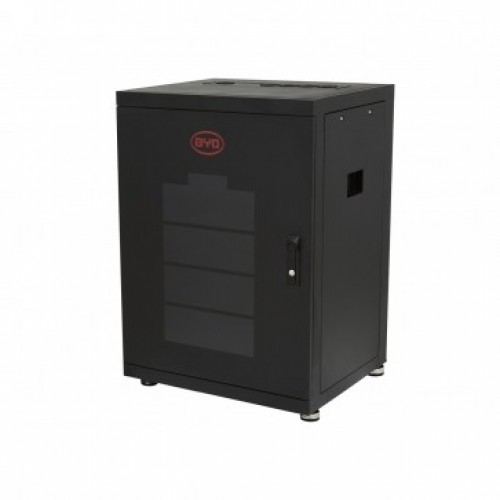

BYD Battery-Box Pro 5.0
Battery-Box Pro 2.5-10.0 consists of the battery modules B-Plus L 2.5 with 2.56 kWh usable capacity each. Up to 4 B-Plus L 2.5 modules can fit into one cabinet, and up to 8 cabinets can be put into parallel connection. Thus capacities from 2.56 to 81.92 kWh can be chosen individually in 2.56 kWh steps. Battery-Box Pro 13.8 has a usable capacity of 13.8 kWh per battery rack. Up to 32 Battery-Box Pro 13.8 can be connected in parallel. Thus, the capacity can be chosen individually in 13.8 kWh steps from
13.8 to 441.6 kWh
Safe Battery Chemistry
B-Box is designed with LiFePO4 chemistry battery which has been widely recognized as one of the safest battery technologies. LiFePO4 chemistry features stable structures and its thermal runaway temperature is over 480°C. That’s 100% higher than NCM and NCA chemistry. It is designed for residential and commercial applications with absolute safety.
Railway and Automotive Standard Battery
As the world's largest Electric Vehicle manufacturer, BYD brings railway and automotive battery standards to residential and commercial solutions: B-Box. 6+ years’ track records of large scale applications in Electric Vehicles ensure its safety and reliability. All products have been certified according to international standards including TUV, UL and CE.
High Power Output
B-Box has the highest output power in industry, which brings the highest performance to customers. The system is able to reach C rate at max 1C and 2C at peak to support critical loads such as A/C and pumps, etc.
Easy Installation and Uninterruptible Maintenance
All B-Box systems have modular design featuring uninterruptible maintenance, and easy installation.
Flexible Extension Life Time
B-Box is equipped with modular design and smart BMS (Battery Management System), allowing extension throughout its lifetime.
B-Box is designed with natural cooling providing optimum efficiency.
10 Years Warranty
10 Years Warranty provides the best guarantee of operation.
Inverters connectable to BYD Battery-Box Pro:
SMA Sunny Island 4.4M
SMA Sunny Island 6.0H
SMA Sunny Island 8.0H
