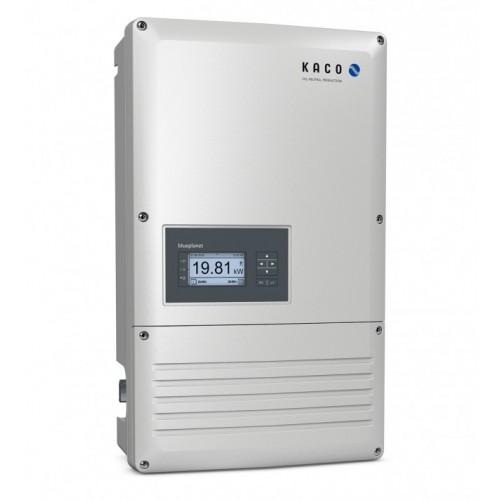

KACO blueplanet 20.0 TL3
KACO blueplanet 20.0 TL3 solar inverter offer plenty of scope for your photovoltaic projects in the medium power range – from small, commercial solar roofs to large-scale, open space solar parks.
The blueplanet 20.0 TL3 inverter operate using two separate MPP trackers that can handle both symmetrical and asymmetrical loads. You will be able to deal with east/west facing roofs (symmetrical load), factory roofs which are shaded or inconsistently designed and open spaces (asymmetrical load).
Your workaholics for any kind of PV system
The wide input voltage range underscores the high performance of the units: The inverters start at 250 V, and, when in operation, continue to feed in at 200 V. They work right up to 950 V. First, these features give you a high degree of flexibility in system planning, and later, their long working hours will result in extremely high profitability.
Safe and obliging
The combination of inverter and Powador-protect allows you to meet the requirements of grid and system protection as well as power management simply and inexpensively.
The inverter is equipped with preinstalled sockets for each MPP-Tracker into which the DC surge protection device of type SPD 1+2 can be fitted.
They also include two Ethernet ports that allow for bus cabling ("daisy chain").
OD+: the perfect inverter for coastal areas
In the OD+ model variant, KACO new energy inverters are built to be resilient against salt air corrosion. Whereas you have normally to keep a minimum distance to the sea of 2000 metres, you can install OD+ inverters as near as 500 meters from the shoreline.
The testing of the devices is based on the norm IEC 60068-2-52:1996, Environmental testing - Part 2: Tests - Test Kb: Salt mist, cyclic (sodium chloride solution).
The following inverters are tested without any abnormalities and are available in an OD+ version: blueplanet 15.0 TL3 and 20.0 TL3, blueplanet 50.0 TL3, blueplanet 125 TL3.
- Up to 98.4% efficiency
- 2 MPP trackers, symmetrical and asymmetrical loading possible
- Wide input voltage range 200 V – 950 V
- External interface switches unnecessary for grid and system protection if used with Powador-protect
- Prepared for DC surge protection SPD 1+2
- Protection class IP65 for outdoor use
Easy to install
- Graphical display, multilingual menu, pre-configured country settings
- Compact design
- DC connection via plug connector
