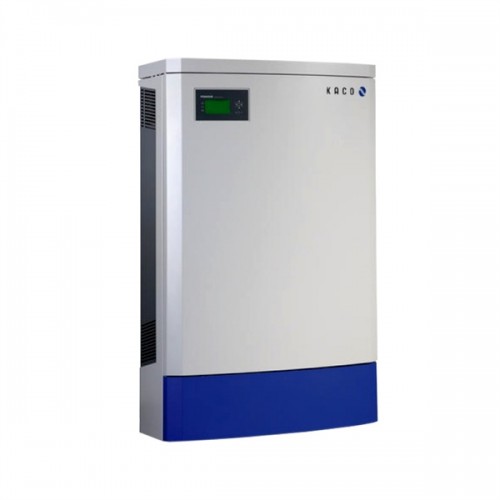

KACO Powador 72.0 TL3 Park

€5,645.00

Availability: In stock

* Required Fields

The 48.0 TL3 and 72.0 Powador Park transformerless, 3-phase inverters are ideally suited for connection to the external transformers of decentralized commercial and utility-scale solar power plants.

Worldwide Delivery Service

International Delivery Service

Product Description

KACO Powador 72.0 TL3 Park

The Park has the power.

Functions
Our Powador TL3 Park units are transformerless inverters with an output voltage of 480 V. This caters for a frequent need in designing large-scale solar power plants that  require connection to external transformers. The peak efficiency of this solar PV inverter is 98%. A European efficiency of 97.9% for the Powador 48.0 TL3 Park make it powerful workhorses in your quest for maximum energy yields. XL version: even more cost-effective. In addition to the M version, the Powador Park units are available in three more versions: XL, XL-F and XL SPD 1+2. The XL version rounds off the features that make these solar PV inverters the optimal choice for decentralized PV system designs, even up to utility-scale applications. The integrated string collector with string fuses and overvoltage protection opens up significant cost advantages. 4 strings can be connected per MPP tracker with the Powador 48.0 TL3 Park, and even 5 strings per MPP tracker of the Powador 72.0 TL3 Park. This allows for cost-effective,  clearly arranged cabling. Our XL-F version comes with fuses at the plus and minus DC connections. The XL SPD 1+2 version includes surge protection devices type 1+2 placed before each MPP tracker.

Benefits
Efficient:

  •     98.0% efficiency
  •     3 MPP trackers, symmetrical and asymmetrical loading
  •     Wide MPP range

Cost-effective:

  •     Max. number of strings per inverter: 15 (Powador 72.0 TL3 Park), 12 (Powador 48.0 TL3 Park)
  •     Cost-saving, DC input configuration available
  •     Country-specific, default settings and multilingual menu for easy installation

Communicative:

  •     Graphical display
  •     Integrated data logger with web server
  •     USB interfaces for updates

Downloads:
- Kaco Powador 72.0 TL3 Park Datasheet
