Product Description

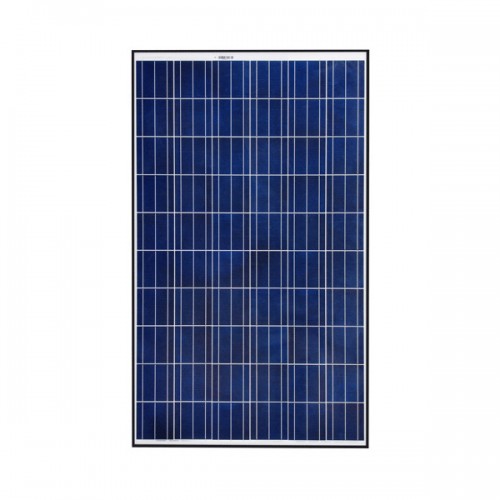

Polycrystalline photovoltaic module REC Peak Energy 270 W
REC Peak Energy Series panels are the perfect choice for building solar systems that combine long lasting product quality
with reliable power output. REC combines leading standards of design and manufacturing to produce high-performance solar panels with uncompromising quality.
GENERAL DATA
Cell type: 60 multi-crystalline3 strings of 20 cells with 3 bypass diodes
Glass: 3.2 mm solar glass with anti-reflection surface treatment
Back sheet: Highly resistant polyester
Frame: Anodized aluminum (Available in silver or black color)
Junction box: IP67 rated 4 mm² solar cable, 0.9 m + 1.2 m
MECHANICAL DATA
Dimensions: 1665 x 991 x 38 mm Area: 1.65 m² Weight: 18 kg
MAXIMUM RATINGS
Operational temperature: -40 ... +85°C
Maximum system voltage: 1000 V
Maximum snow load: 550 kg/m² (5400 Pa)
Maximum wind load: 244 kg/m² (2400 Pa)
Max series fuse rating: 25 A Max reverse current: 25 A
ELECTRICAL DATA
Nominal Power - PMPP (Wp) 270
Nominal Power Voltage - VMPP (V) 31.2
Nominal Power Current - IMPP (A) 8.66
Open Circuit Voltage - VOC (V) 38.4
Short Circuit Current - ISC (A) 9.18
Panel Efficiency (%) 16.4
