Product Description

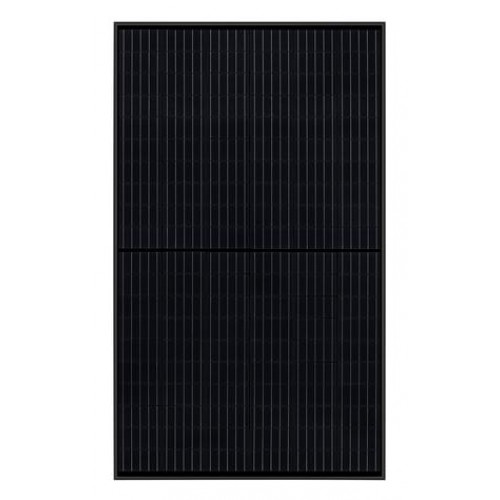

Polycrystalline photovoltaic module REC Twin Peak Energy 285 W (black)
PREMIUM SOLAR PANELS WITH SUPERIOR PERFORMANCE
REC TwinPeak BLK Series solar panels feature an innovative design with high panel efficiency and power output, enabling customers to get the most out of the space used for the installation.Combined with industry-leading product quality and the reliability of a strong and established European brand, REC TwinPeak BLK panels are ideal for residential and commercial rooftops worldwide.
General data
Cell type: 120 REC HC multi-crystalline 6 strings of 20 cells (6" x 3")
Glass: 0.12" (3.2 mm) solar glass with anti-reflective surface treatment
Back sheet: Double layer highly resistant polyester (white)
Frame: Anodized aluminum (black)
Junction box: 3-part with bypass diodes, IP67 rated 4 mm² solar cable, 35" + 47"
Connectors: Multi-Contact MC4 (4 mm²)
Mechanical data
Dimensions: 1665 x 991 x 38 mm
Area: 1.65 m²
Weight: 18 kg
Electrical data
Nominal Power - PMPP (Wp) 205
Nominal Power Voltage - VMPP (V) 29.5
Nominal Power Current - IMPP (A) 6.97
Open Circuit Voltage - VOC (V) 36.1
Short Circuit Current - ISC (A) 7.50
Maximum ratings
Operational Temperature: -40 ... +85°C
Maximum System Voltage: 1000 V
Warranty
10 year product warranty
25 year linear power output warranty (max. degression in performance of 0.7% p.a.)
Downloads:
- REC TwinPeak Energy 285TP2 BLK Datasheet
- REC Warranty
