Fronius Ambient Temperature Sensor

€32.00

Availability: In stock

* Required Fields

Various other Fronius accessories are available on request. Please ask for concrete item at [email protected]

Worldwide Delivery Service

International Delivery Service

Product Description

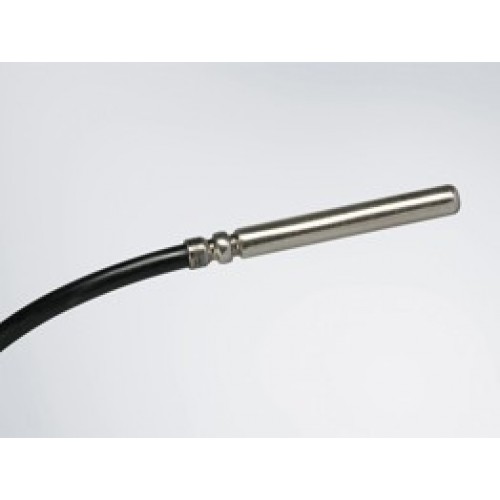

Fronius Ambient temperature Sensor

Due to its large temperature range the ambient temperature sensor is suited for measuring outside temperature as well as room temperature.

Technical data

Sensor PT1000
Measuring range -40°C to +180°C
Accuracy ±0.8°C (in the range -40°C to 100°C)
Design Sensor in a cylindrical housing of stainless steel
Dimensions Length 50 mm, Ø 6 mm
Cable 3 m Cu-cable; 2 x 0.5 mm, silicon isolated, ferrules, UV-resistant
Max. cable lenghth
(distance: Sensor Card/Box - sensor)
20 m


Mounting tip:
For this sensor, there is no special mounting construction. The ambient temperature sensor can e.g. simply be placed under the pv-modules.

Downloads:
- Fronius Warranty
