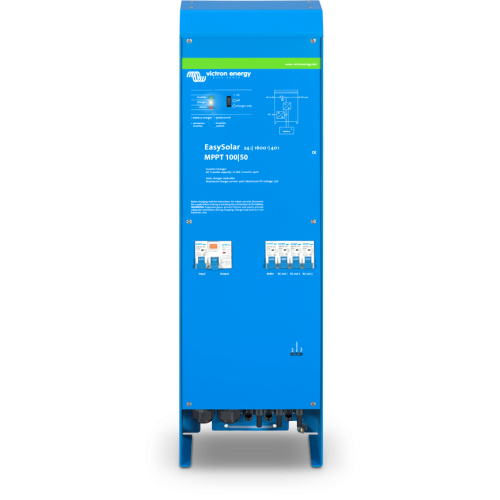

Victron EasySolar 24/1600/40-16 all-in-one solution
The EasySolar combines an untra-fast MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring. Up to three strings of PV panels can be connected to three sets of MC4 connectors.
The MPPT charge controller and the EasyPlus inverter/charger share the DC battery cables (included). The batteries can be charged with solar power (BlueSolar MPPT) and/or with AC power (inverter/charger) from the utility grid or a genset.
AC distribution consists of an residual-current device and four AC outputs protected by circuit breakers. One output is controlled by the AC input and switches only when AC is available. An additional fuse box is no longer needed.
EasySolar also combines the familiar Victron PowerAssist technology; protecting the utility or generator supply from being overloaded, by adding extra inverter power when needed.
