Victron Phoenix 24/375

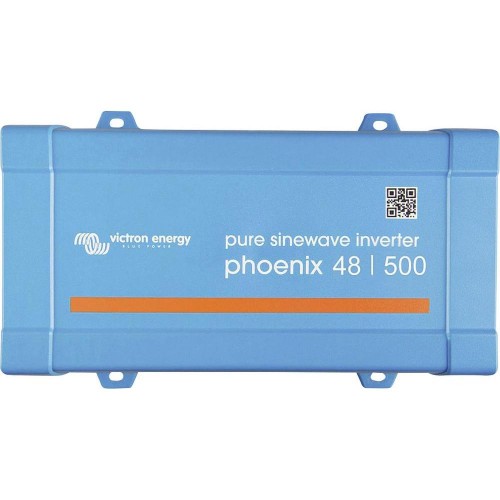

The Victron Phoenix inverters are suitable for the widest range of applications. They are designed to produce a true sine wave with optimised efficiency and without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying problem-free power to any load.
A unique feature of the SinusMax technology is very high start-up power which cannot be offered by conventional high frequency technology.
Up to 6 units inverters can operate in parallel and achieve virtually unlimited power thanks to parallel and 3-phase operation capability. For example six 24/5000 units will provide 24kW / 30kVA output power.
All models have a RS-485 port. All you need to connect to your PC is our MK2 interface (see under accessories). Together with our VEConfigure software, which can be downloaded free of charge from our website, all parameters of the inverters can be customised. This includes output voltage and frequency, over and under voltage settings and programming the relay. This relay can for example be used to signal several alarm conditions, or to start a generator. The inverters can also be connected to VENet, the new power control network of Victron Energy, or to other computerised monitoring and control systems.
